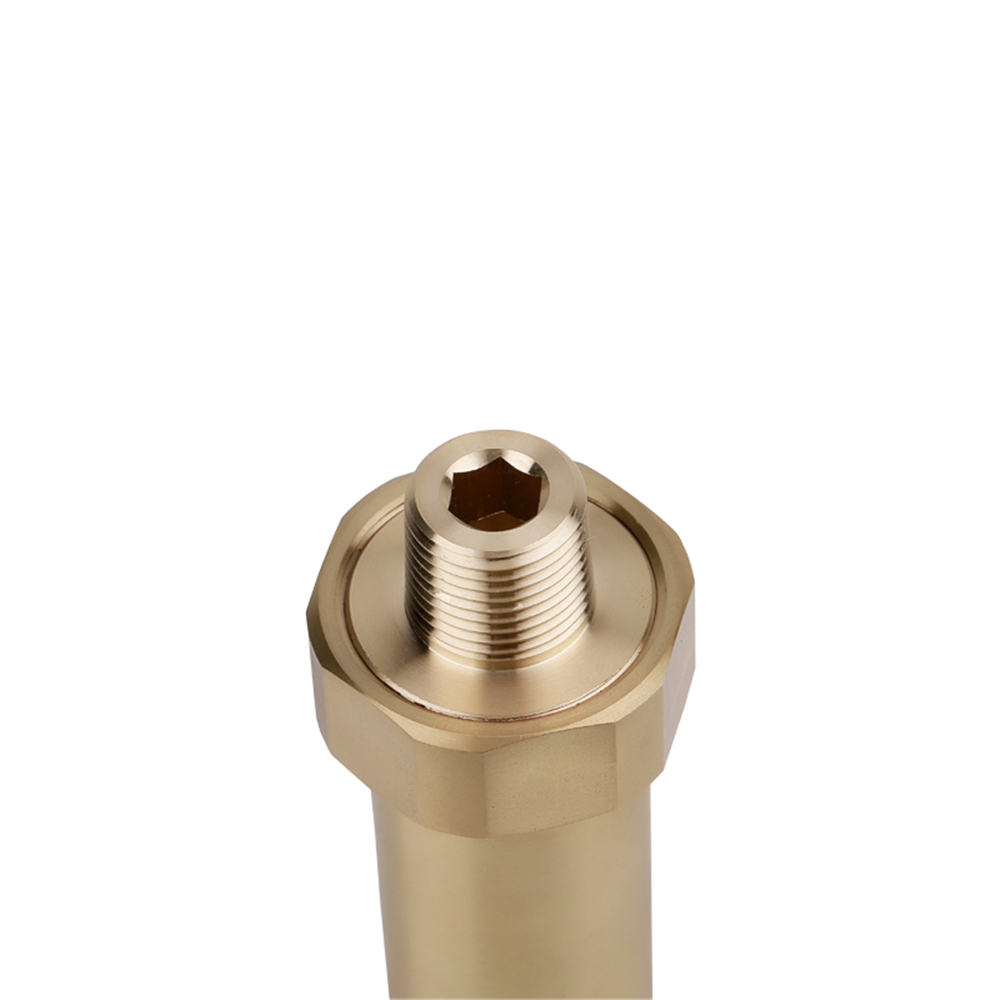

910028NT Scald Protection Valve
Working principle
The Scald Protection Valve is designed to ANTI scald when the water temperature rise.
When the water temperature rises to protection temperature, the thermostatic element close the valve, thereby no any water through the valve.
Once the water temperature is below than protection temperature, the Scald Protection Valve will open again and the water will flowing.
Technical Parameter User manual Certification Customize Solution
Material: Brass
Initial open: 36.7℃
Full open: 43.3℃
Full close: 35℃
Working temperature: -30 - 80℃
MAX pressure: 1MPa
Max ow: 20L/min (300KPa)
Control accuracy: ±1℃
Thread specification: 3/8 NPT, 3/4 NPT
If you are not sure what valve do you want, or the parameters of the valve, our team will assist you according to your application and idea, to achieve what valve do you need.
