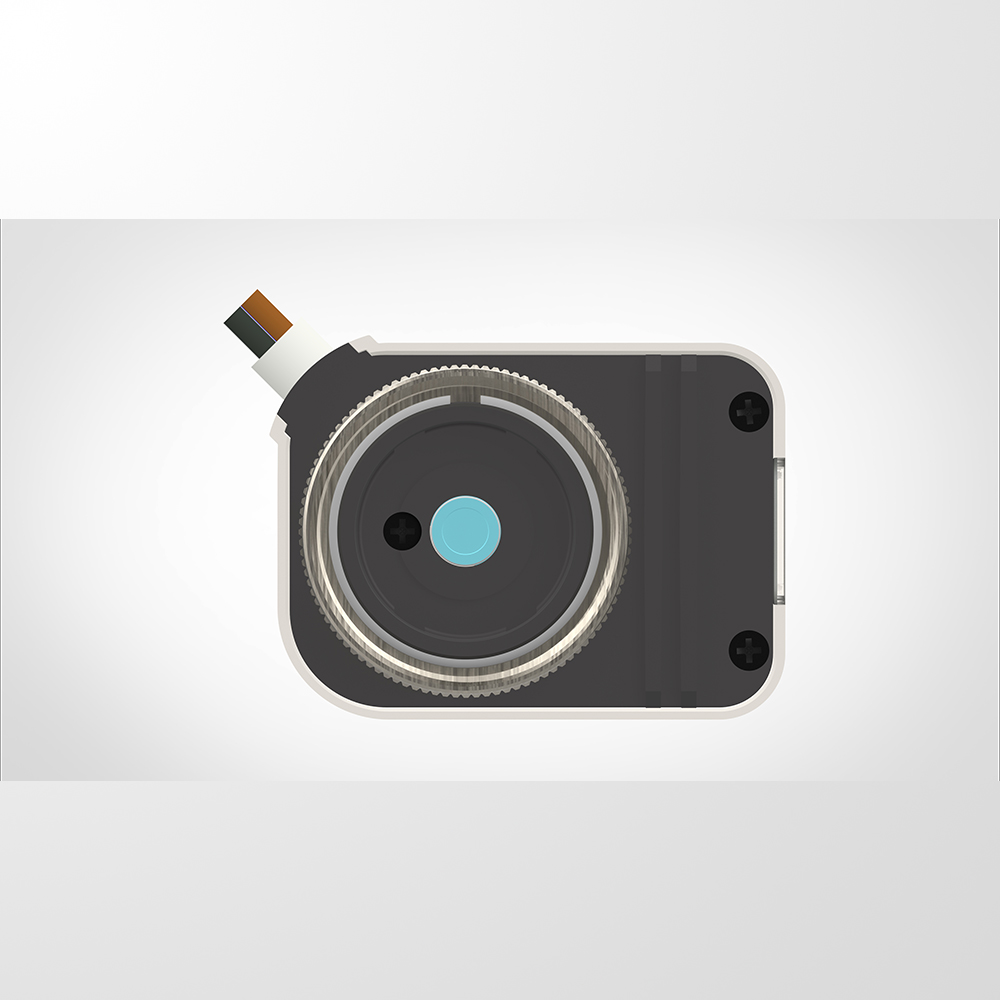

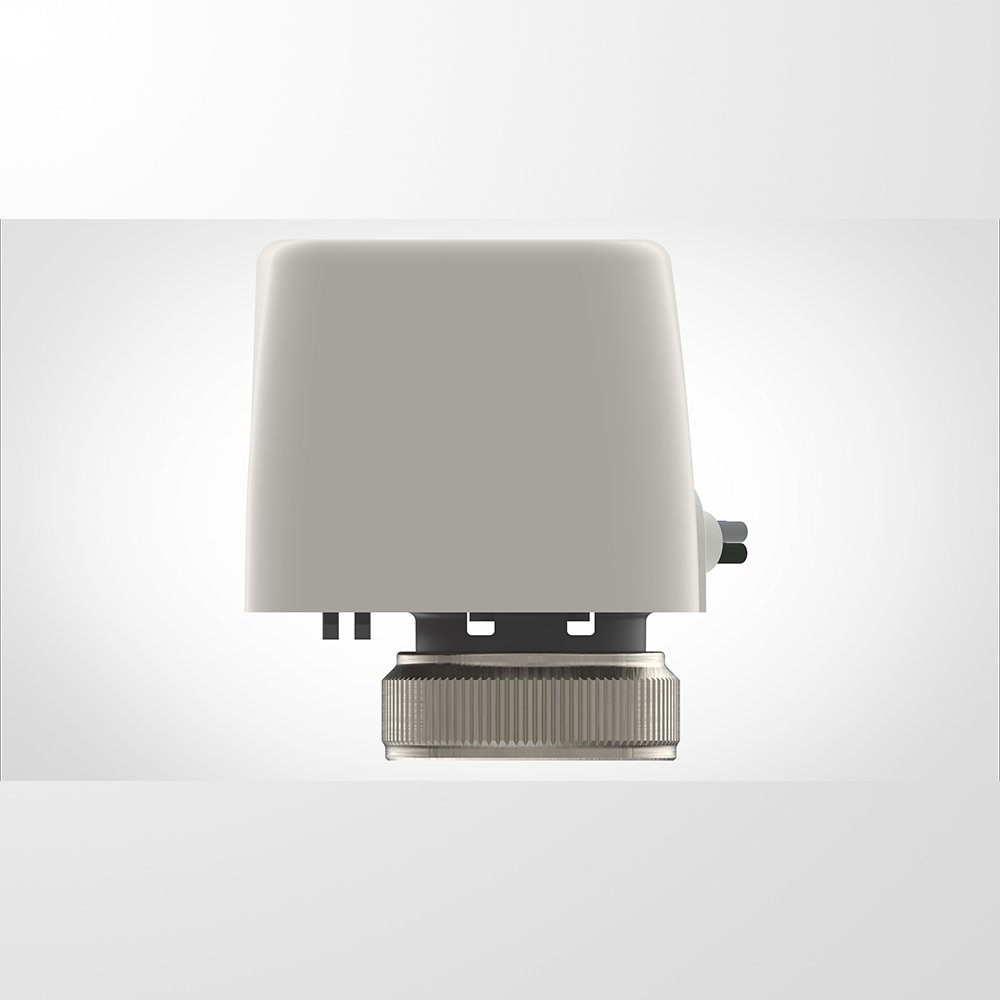

920074PL（4 wires）
Water pump control type thermal actuator

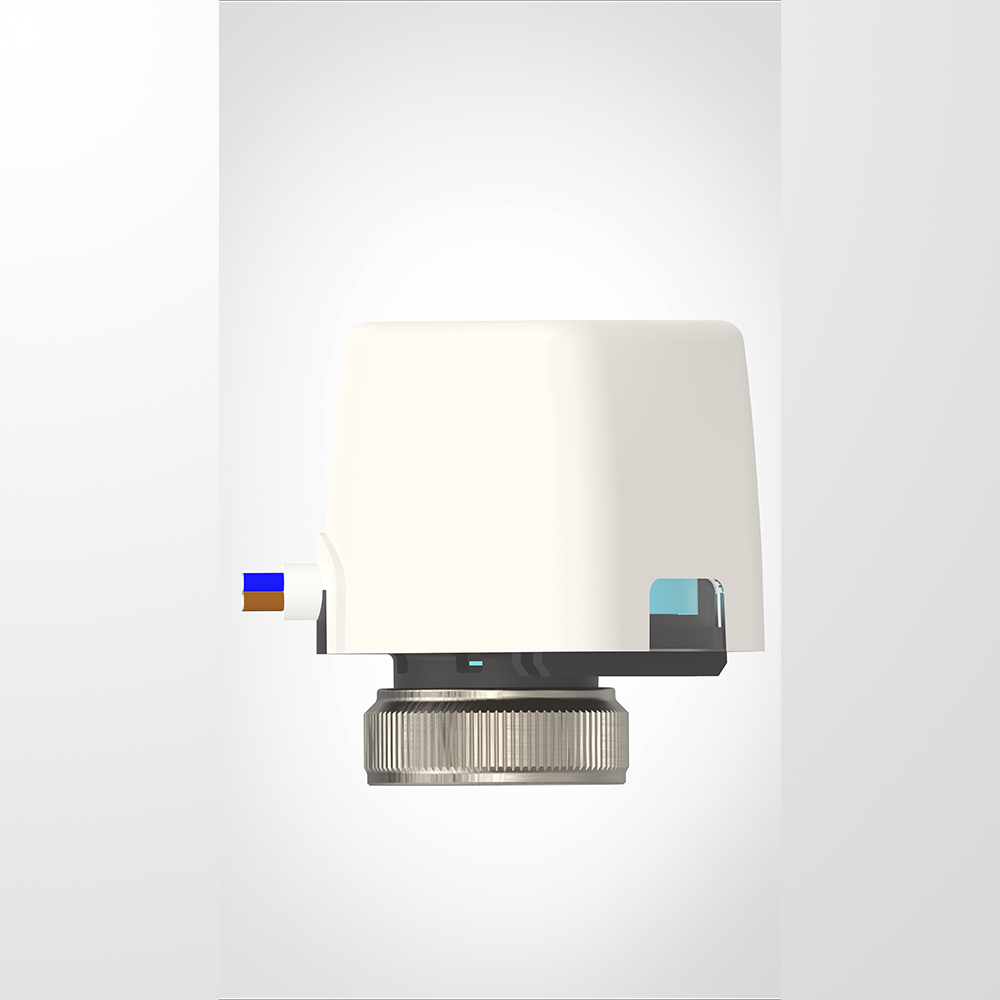

This actuator can be used in both underfloor heating system and controlling water pump. It is desiged for low wattage, individual radiant circuit control. It provides on/off flow control to individual radiant circuits. Incorporates an indicator window that allows a visual indicator whether the valve is fully open(black) or closed(blue)
Features
Compact design
Low power consumption
Full view stroke indication
160s-230s open/close water pump
Noiseless
Support low-power control
Control water pump
Technical Parameter User manual Certification Customize Solution
Model: 920074PL
Control direction: Normally closed
Voltage: 220V AC
Adapter:M30x1.5mm
Power consumption:2w
Cable length:800MM
Working temperature:-5℃~60℃
Protection level:IP54
Force: 110N
Standard: EN60730
Closing and opening time:3-5minutes
Stroke:≥3.4mm
Micro switch:max700mA(3A)
Housing material:PA66+30%GF
If you want to develop new thermal actuator, our team will assist you to achieve your idea according to these details as follow:
-Supply the shape design.
-Supply the spring force.
-Supply the voltage.
