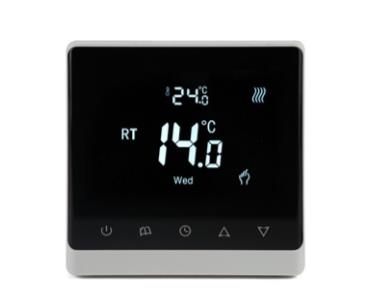

950035PL is used for room temperature control and household temperature control floor heating system . It controls the operation status of the floor heating system by sensing the comparison between the room temperature and the set temperature . While improving comfort ,achieve the purpose of energy saving . This series of thermostats have manual functions,programmable functions , state memory functions , and high-sensitivity touch keys ( optional WIF function and infrared remote control.
Technical Parameter User manual Certification Customize Solution
Input voltage : AC230V , 50 / 60HZ
Self-consumption power : < 1W
WTemperature control accuracy : ± 1℃
Temperature sensing element : NTC
Temperature control range : 05 ℃~45℃
Load current : 3A
Dimensions : 86mmx86mmx14mm
Mounting hole spacing : 60mm
